Item
|
Parameters
|
Specifications
|
|
Main body
|
Moc
|
M. S. Square tubes.
|
|

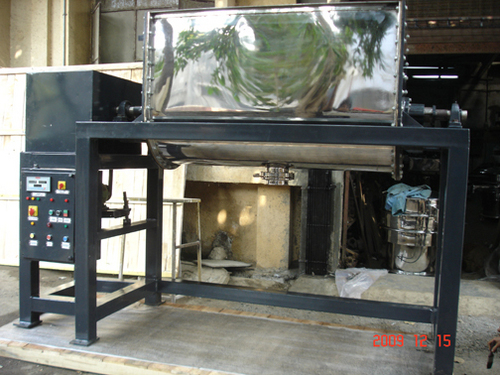

Blender trough
|
Stainless steel : grade 304.
Capacity : 500 liters.
Two heavy plates made from ms. Covered with s.s. 304 sheets will support the 'u' shaped trough.
Outlet: through macon valve.
|
|
Blender shaft & ribbon
|
Two ribbons integral with the main shaft running in opposite direction run with minimum clearance from the u shaped trough. Shaft and ribbon made from s.s 304 are supported on bearings in plummer blocks. Teflon gland packing cover is provided on the trough plates.
|
|
Blender cover
|
Ss. 304 over with proximity switches for open cover.
|
|
Control panel
|
Moc
|
Stainless steel grade 304
|
|
Timer control
|
Timer control for setting of blending time up to 999 minutes.
|
|
Buzzer
|
Buzzer is provided for indication of cycle completion. The buzzer remains on until reset by the operator.
|
|
Motor
|
3 h.p. 3 phase, 440 v a.c. 50 hz. 1400 Rpm
|
|
Drive
|
Gear box
|
Worm reduction gearbox
|
|
|
Coupling
|
Bush pin type coupling
|
|
|
Moc
|
Square tube and structural for mounting of the drive with arrangement to fit the drive section to the blending section.
|
|
Mobility
|
|
Fixed the massonary work
|
|
Overall dimensions
|
Size
Net weight
|
2,100 mm x 900 mm x 1650 mm
1000 kgs. Approx
|
