Continuous Sealers

Continuous Sealers
Continuous Sealers
Product Code : CBS 30
Product Description

With the help of our competent team of professionals, we are engaged in offering our esteemed clients a wide range of Continuous Sealers. These sealers are suitable for sealing heat sealable virgin and laminated pouches. Our highly skilled professionals manufacture these sealers as per the international standards of quality using world class raw-material and ultra-modern technology. Owing to continuous band sealers and robust construction, the offered Continuous Sealers are highly demanded in the industry.

Features:

  • Perfect functioning

  • Precise result

  • Durable finish standards

  • Superior performance

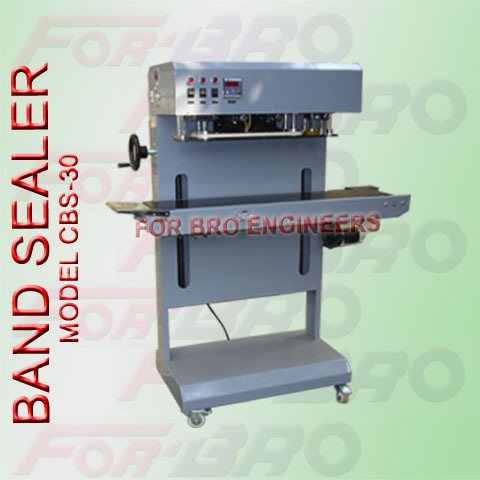

Continuous Sealer - CBS-30

Continuous Band Sealer offered by For-Bro engineers are versatile semi-automatic sealing machines ideal for sealing heat sealable Virgin and Laminated pouches.Continuous band sealer has a Presettable Digital temperature controller is used to monitor the temperature for different types of pouch material.Sealing is achieved by heat conducted through Ptfe coated gripper belts for continuous Band sealers.The hot Gripper belts carry the pouch and cause localize melting of pouch material. and subsequent sealing by metallic and rubber pressure roller.

The pouch carrying conveyor and gripper belts are driven by common drive resulting in synchronous movements of pouches.

Suitable for

  • Ideal for sealing of Virgin and Laminated pouches, Suitable for Salt, Detergent, Snacks, Chemical, Pesticides, Flour etc.

Salient Features:

  • Sturdy and robust Design

  • In built cooling mechanism for quick seal

  • Adjustable Height to handle various pack-sizes

  • Suitable for various pouches with varied thickness

  • Adjustable Conveyor height

  • Vertical and Horizontal models available

  • Optional Nitrogen flushing available

Technical Specifications:

Parameters

Specifications:

Material sealed

Virgin / laminated heat sealable pre formed pouches.

Bag sizes handled

Adjustable from 100 mm to 400 mm height

Seal width

6 mm

Model of heat transfer

Through endless PTFE coated belts.

Power

Motor: 0.5 h.p., 3 phase 440v ac 1400 rpm, 50hz

Heaters

250 w x 2 nos.

Pouch conveyor

Built in pouch conveyor of 195mm width and 1500mm long.

Operating speed

Upto 9 meters per minute belt speed the sealing speed depends upon the bag width and efficiency of operator.

M.O.C.

MS/CI construction duly powder coated / painted.

Mobility

Provided with castor wheels

Overall dimensions

1500mm (I) x 550mm (w) x 1350mm (h)

Packing dimensions

1200mm (I) x 700mm (w) x 1500mm (h)

Net weight

170kgs. Approx.

Gross weight

350kgs approx.
