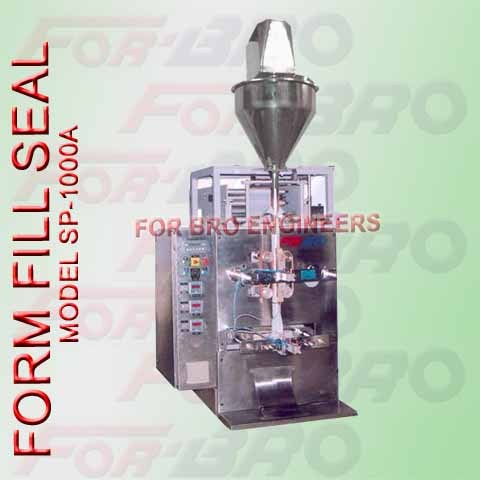

Item
|
Parameters
|
Specifications
|
|
Operational Specifications
|
Capacity
|
From 100g ms to 1000g ms with change parts and change of setting.
|
|
|
Products
|
Fine non free flow powders
|
|
|
Packing material
|
Laminated heatsealable plastic Max roll size: 15 inches.
|
|
|
Pouch size
|
Max: 180mm width x 250mm long.
Min: 75mm width x 100jmm long.
|
|
|
Core size
Seal pattern
|
75mm
Pillow pouch with top bottom and centre seal of about 10mm width.
|
|
|
Operation mode
|
Intermittant motion
|
|
|
Packing speed
|
Upto 35 pouches per minute, depending upon nature of packing material, flowability of product and packsize.
|
|
Dozer
|
Type
|
Auger filler model ap-100e / ap-100j.
|
|
|
Dozage control
|
Through electro magnetic cbc and photoelectric sensor
|
|
|
Drop timing
|
Drop timing can be adjusted with plc.
|
|
|
Filling accuracy
|
+ 2% at constant powder level in the hopper Filling accuracy also depends upon consistency of product bulk density.
|
|
Pouch formation
|
Drive
|
1 h.p. / 2 h.p.l motor with variable speed drive.
|
|
|
Tube formation
|
By collar and forming tube
|
|
|
Vertical seal
|
300mm long vertical jaw with pneumatic cylinder.
|
|
|
Jaw box
|
Pneumatically operated cross seal jaws of 200mm width
|
|
|
Pouch cooling
|
Compressed air jets for cooling of cross seal
|
|
|
Cutter
|
Zig zag knife with pneumatic cylinders.
|
|
|
Roll feed
|
Motorized roll feed with floating carriage for roll alignment.
|
|
|
Pouch length control
|
With colour mark sensor
|
|
|
Web control
|
Motorized web control system
|
|
|
Heaters
|
300 w x 3 nos.
|
|
|
Drive
|
1 hp. Motor with gear box and variable speed drive.
|
|
Controls
|
Plc
|
Telemechanique / delta plc with 20 i/os.
|
|
|
Mmi
|
Touch screen mmi
|
|
|
Panel body
|
S.s. 304 control panel body with telemechanique / siemens switch gears.
|
|
Pneumatics Batch coding
|
Fittings
|
Camozzi make pneumatics
|
|
|
Air
|
50 lpm at 6 kg / sq cm to be arranged by user.
|
|
|
|
Pneumatic batch coding unit with rubber stereo.
|
