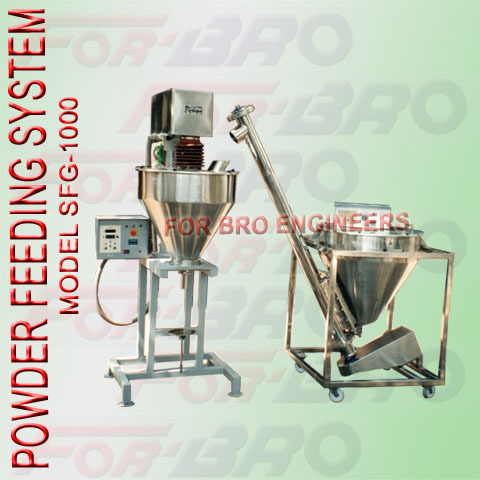

Item
|
Parameters
|
Specifications
|
|
OPERATIONAL
SPECIFICATIONS
|
CAPACITY
|
SILO CAPACITY OF 100 LITRES.
|
|
CONTROL
|
CAPACITANCE TYPE LEVEL CONTROLLER.
|
|
OPERATION MODE
|
AUTO AND MANUAL MODES
|
|
FEEDER SCREW
|
INCLINED S.S.304 FEEDER SCREW OF NOMINAL DIAMETER OF ABOUT 125MM OPERATING ON RECEIPT OF SIGNAL FROM LEVEL CONTROLLER.
|
|
SCREW SIZES
|
125MM NOMINAL DIA X 2400MM LONG.
|
|
POWDER FEEDING
|
TO BE ARRANGED BY YOU.
|
|
CONTROL PANEL
|
MOC
|
SS304 / OR COMPOSIT WITH THE AUGER FILLER CONTROL PANEL
|
|
CONTROLLER
|
SOLID STATE LEVEL CONTROLLER WITH PROBE
|
|
DRIVE
|
MOTOR
|
1 HP MOTOR WITH SUITABLE GEARBOX.
|
|
STIRRER
|
INTEGRAL WITH SCREW DRIVE.
|
|
PHYSICAL SPECIFICAIONS
|
SILO CAPACITY
|
100 LITERS.
|
|
FRAME
|
SQUARE TUBE FRAME FOR MOUTINGOF HOPPER AND THE FEEDER DRIVE DULY POWDER COATED.
|
|
MOUNTING
|
THE SILO AND FEEDER WILL BE MOUNTED GROUND LEVEL.
|
|
|
M.O.C.
|
SILO, SCREW FEEDER STIRRER ETC MADE FROM S.S.304. FRAME DRIVE MOUNTING ETC WILL BE MADE FROM M.S. DULY POWDER COATED.
|
|
DIMENISIONS
|
OVERALL DIMENSIONS
|
1500MM X 1500MM X 1500MM ABOVE MAZENNINE FLOOR.
|
|
SILO INLET
|
1200MM ABOVE GROUND.
|
|
SCREW FEEDER OUTLET
|
1750MM ABOVE GROUND
|
|
NET WEIGHT
|
500KGS APPROX
|
