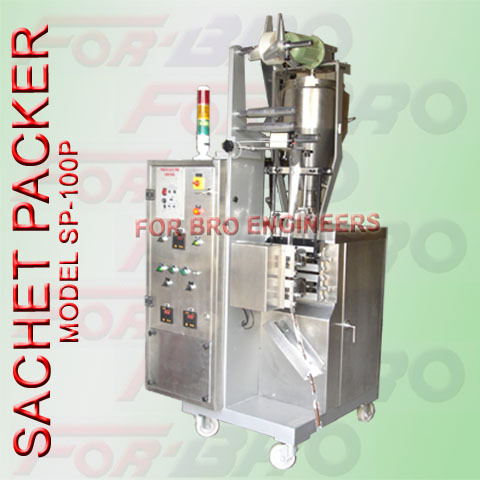

Sachet Packer

Sachet Packer
Sachet Packer
Product Code : SP 100P
Product Description

Sachet Packer - For Paste

Sachet packing machines offer packing solutions for powders, granular products, liquids and pastes mainly in small size unit packs. Varity of dozing heads available makes these machines capable of handling various products with different physical properties. Machines packs product in to 3 or 4 side sealed pillow pouches formed from printed laminate roll . Photoelectric registration helps in precise print positioning on the pouch is provided.

Suitable for

- Small Quantity of Paste like Chocolate, Peanut butter, Ketchup, Chutney,Creame

Other Dozing Units

- Auger Filler: With Photoelectric sensor controls for dozing of non-free flowing/fluffy powders
- Volumetric Cup Filler: With/Without volume adjustment for free flowing powders
- Liquid Dozer: Piston pump with micro adjustment of volume
- Paste Filler: For dozing of thick viscous liquids with pump and pressure screw if required

Salient Features :

- Easy changeover of pack size and output control.
- GMP and Standard models.
-
Robust construction with user friendly controls.
-
Photoelectric registration for precise print positioning.
-
Contact parts made from S.S.304 (S.S.316 contact parts on request)
- Models with dozing head for granules / powder / liquid / tablet available.

Technical Specifcations

Item Parameters Specifications
Operational
Specifications
Capacity From  5ml to 25gms paste
Control  Electromechanical  with photoelectric sensor.
Operation  mode  Automatic
Packing speed  Upto  30 pouches per minute with single tracks depending upon the product density and packsize.
Pouch formation With liner former  with max size upto 220mm width of laminate.
Pouch type Three side sealed  /four side sealed
Max pouch size 100mm x 150mm max.
Vertical seals Roll  pulling and vertical seales with die rollers through epicyclic gear train.
Horizontal seals With  rotary cross seal rollers with eccentric  for matching of linear speed of pouch movement.
Heaters Cartridge heaters  250w x2nos.
Cartridge heaters 250w x 2nos.
Dozer Syringe  based paste filling unit with pneumatically operated  valve mechanism  and clutch to dis-engage the  filling operation.. One set of syringe and piston will be provided for one  paksize range.
Dozer hopper A dozer hopper,  directly mounted on the valve body .   Capacity: 8 litres.
Filling accuracy + 3% for  homogeneous paste.
Optional  Tailcutting unit Pneumatically operated tail cutting arrangement can be provided optionally.
Jacketed hopper    jacketed hopper with immersion type heaters with temperature contoller can be provided
Control panel Moc Inbuilt with the machine. M.s.body
Controller Solid state  electronic controller with photoelectric sensor for  print mark registration.
Temperature controllers Digital time proportional  temperature controllers with j type thermocouples.
Drive Motors  0. 5 h.p. Single phase . For main machine (variable speed drive optional)
Gear box Worm reduction gear box
Physical specificaions MOC All parts coming in direct contact of the product made from s.s. 304. All other parts made from MS/CI ( for GMP models all parts are made from s.s.304 / covered with ss304 sheets/ ENP coated.)
Main machine 900mm x1000mm x 1800mm
Net Weight 450KGS Approx
Mobility Provided with Castor Wheels
