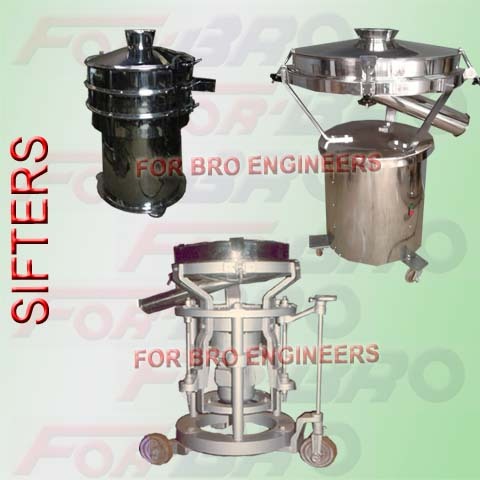

Sifter

Sifter
Sifter
Product Code : VS 30
Product Description

Sifter

Salient Features :

  • Foll GMP construction upto 36 inch diameter.
  • Standard and moulded screens available

Item

Parameters

Specifications

OPERATIONAL

SPECIFICATIONS

Capacity

30 INCHES DIA SCREEN FOR POWDER GRADING.

No. of Decks

ONE

Operational Mode

POWDER TO BE FED TO THE MACHINE AT CONTROLLED RATE FOR REQUIRED GRADING.

Speed

DEPENDING UPON PARTICLE SIZE, MOISTURE CONTENT AND FLOWABILITY

Powder Feeding

TO BE ARRANGED BY YOU.

Optional

YOU MAY OPT FOR EXTRA DECKS FOR OBTAINING DIFFERENT GRADATION IN THE POWDER.

DRIVE

Motor

0.5 HP GOOD EARTH MAKE SPECIAL MOTOR FOR VIBRO SIFTER GRADE.

PHYSICAL SPECIFICATIONS

MOC

ALL PARTS COMING IN DIRECT CONTACT OF THE PRODUCT MADE FROM S.S. 304. ALL OTHER PARTS MADE FROM /COVERED WITH SS 304 SHEETS.

Inlet Diameter

150 MM

Outlet Diameter

150 MM

Mobility

PROVIDED WITH CASTOR WHEELS

Overall Dimensions

850 MM X 1000 MM X 1100 MM (H)

Net Weights

350KGS APPROX
