Weigh Filler

Weigh Filler
Weigh Filler
Product Code : ALC-100
Product Description

We are a noteworthy manufacturer, exporter and supplier of a highly efficient range of Weigh Filler. This filler is used for packaging of powders & semi powder products like ground spices, chemicals, pesticides, colors, paint, milk powder, pharmaceutical powder, coffee, herbal powder, etc. Manufactured using superior-grade raw material with the help of cutting-edge techniques, the offered Weigh Filler is offered in varied specifications as per the specific requirements of clients.

Features:

  • Sturdy construction

  • High performance

  • Durability

  • Easy-to-install

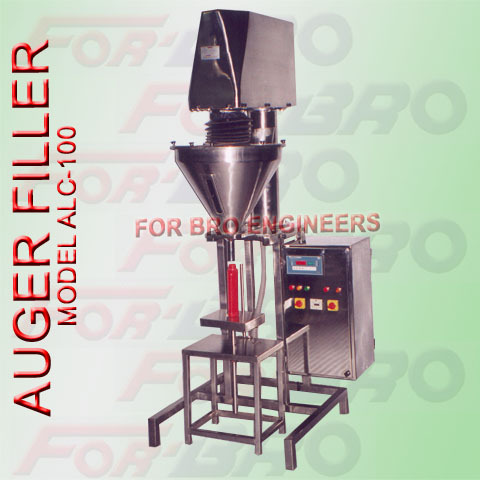

Load Cell Based Auger Filler/Weigh Filler

Auger fillers are versatile filling machines for free-flowing as well as non-free flowing powders and thick pastes. Machine can handle wide range of products and pack sizes starting from 10gms to 5Kg.  Machine operates on the principle of Positive displacement of screw operating under constant head of powders. Precisely designed Auger screw displaces powder through funnel into pouches /container held on the Load cell plat form. Load cell will continously provide feedback to the controller which will then monitor the speed of the product discharge. Course and fine feed, Auto tare and the calculation of product in flight ensures that the measurement is accurate. Load cell based auger filler is ideal for products whose charecteristics varies due to batch variation, Atmosphere etc.

Suitable for

  • Ground spices, Chemicals, Pesticides, Colours, Paint, Milk Powder, Pharmaceutical Powder, Coffee, Herbal Powder

Salient Features:

  • Dual mode filling- Weightmetric or Volumetric

  • Microprocessor based controls

  • Auto Tare facility with bulk and fine feed modes for better accuracy

  • Inbuilt in-flight compensation, course and fine tuning

  • Easy in operation

  • Capacity to handle wide range of products and pack sizes

  • Contact parts made from S.S 304 (S.S.316 contact parts on request)

  • Easy changeover of product and pack sizes

  • Sturdy, simple construction assists maintenance and cleanliness

  • GMP and Jumbo models available.

Technical Specifications:

Item Parameters Specifications
 Operational
 Specifications
 Capacity  From 100gms to 2000gms powder
 Control   Microprocessor based load cell controller
 Operation mode   Fine and coarse modes of filling for optimum accuracy
 Filling speed   Upto 10 pouches/bottles per minute depending upon bulk density
 Filling accuracy  + 1% at constant powder level in the mcahine hopper and consistancy
 of bulk density
 Powder feeding   To be arranged by you.
 Control panel  Moc  SS304 with MS component plate
 Controller  Microprocessor based load cell controller for 6 kg. And 10 kg. Loadcell selectability
 Optional mode   Optional facility to use the machine on volumetric filling mode

 Drive
 Motor   2 hp motor with variable speed drive
 Clutch / brake unit   Electromagnetic clutch/brake unit for filling control
 Stirrer   Through helical gearing.
 Physical
 specificaions
 Machine hopper   35 litres.
 Load cell platform  Pouch height adjustable from 100mm to 400mm
 MOC  All parts coming in direct contact of the product made from s.s. 304.
 Other parts made from ms/ci duly powder coated painted.
 (for GMP models all other parts made from / covered with ss 304
 sheets.)

  Overall
 dimenisions
 Main machine  700mm x 1000mm x 1300 mm
 Supporting frame  750mm x 900mm x 1100 mm
 Net weight   400 kgs approx
 Mobility  Main machine with frame provided with castor wheels.
